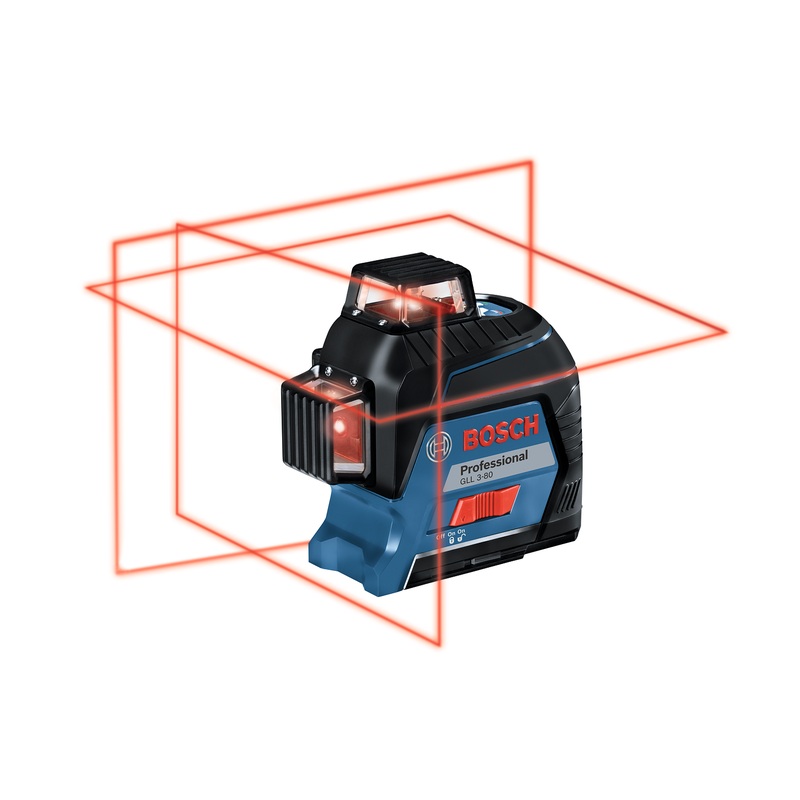

Line LaserGLL 3-80 0 601 063 S00 Visibility on a new level in 3 x 360 High visibility due to high power diodes High work efficiency due to 3 x 360 lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool Easy to operate using intuitive user interface Self-levelling (4 in 4 sec) and very precise ( 0.2 mm/m) Working range of 80 m with the LR 6 or LR 7 Professional receiver (optional) Compact, easy to handle and extremely robust (IP54) Pendulum lock ensures safe transport Technical data Laser diode Line: 630 – 650 nm, Operating temperature -10 40 C Storage temperature -20 70 C Laser class 2 Working range 30 m Working range with receiver 120 m (Diameter) Working range without receiver 30 m (Radius) Accuracy 0.2 mm/m Self-levelling range 4 Levelling time 4.0 s Dust and splash protection IP 54 Power supply 4 x 1.5 V LR6 (AA) Operating time (max.) 4 h in 3-line mode Tripod thread 1/4″, 5/8″ Weight, approx. 0.82 kg Length x width x height 149 x 84 x 142 mm Colour of laser line red Projection 3 x 360 line Compatible laser receivers LR 6 7 Tripod not yet included Reviews There are no reviews yet. Be the first to review “Bosch GLL 3-80 Line Laser” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
