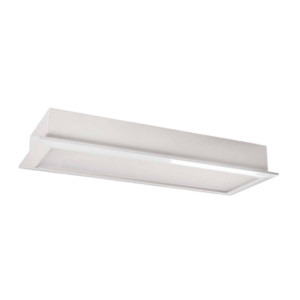

CMRL/C Recessed LED Luminaire – Efficient Marine Lighting Solution

Description Marine-Grade Construction: The housing is made from galvanized steel with RAL9016 white powder coating, offering a durable and corrosion-resistant design suitable for marine environments. Optional SS316L stainless steel is available. Energy-Efficient Lighting: Equipped with powerful LED technology, available in two options: 20W (1800 lm) and 40W (3700 lm), ensuring optimal illumination while saving energy. Dimming Option: Includes a standard LED driver (110-240V, 50/60Hz), with an optional dimming driver to adjust brightness as needed. Temperature Resilience: Designed to operate efficiently in temperatures ranging from -30°C to 50°C. Ingress Protection: IP44 rating ensures protection against dust and water ingress, making it ideal for various marine and offshore applications. Emergency Backup: Available with a 1.5-hour or 3-hour emergency backup option, providing reliable lighting during power outages. Versatile Mounting: Features recessed mounting with two or four entry holes on the back, equipped with rubber grommets for secure installation. Specifications: Specification Details Housing Material Galvanized Steel, Optional SS316L Diffuser Translucent White PC Wattage 20W (1800lm) / 40W (3700lm) Driver LED Driver 110-240V, 50/60Hz Dimming Driver Optional Lumen Output 20W: 1800 lm, 40W: 3700 lm Ingress Protection IP44 Ambient Temperature -30°C to 50°C Emergency Duration 1.5hrs / 3hrs Backup (Optional) Cable Entry Two or Four Entry Holes with Rubber Grommet Terminal Block 6 pole 6mm² max Mounting Recessed Mounting Certification DNV Application Area Offices, Wheelhouse, Staterooms, etc. Color Temperature 5000K (Default), 3500K (Optional)
